Field Report Week 7

AT 409: Field Report Week 7

Aaron Varnau, Treston Russell, Tristan Bungen

No Tuesday Lab for Crew 3 on 10/06/20

Crew 3 Martell Flight Report for 10/05/20:

    Week 6 was a bit of a week off for Crew 3. Our only task was to fly both Martell flight plots once without going to a class location on Tuesday morning. Our schedules conflicted so we chose Monday afternoon because it was the only time we were all available. The NW plot was flown first due to the shorter length, taking the stress of battery life off. This flight was successful and data was collected completely. Our flight of the NE plot was successful as well, but the data collection was not. Between flights, we made a mistake. We pressed the session button on the PPK without holding once then pressed and held it as a second action. This completely ruined the flight and we didn’t even know it. No data was collected at all, and unfortunately this was discovered back in the lab during data processing. Two of us made plans to go back and redo the data collection on Friday but because each crew was flying during week 6, it was deemed unnecessary. During our flights in week 8, we made sure that we did not make the same mistake and had the added benefit of new checklists specifically stating that the red light on the PPK should not be on - a sign of the error we made.

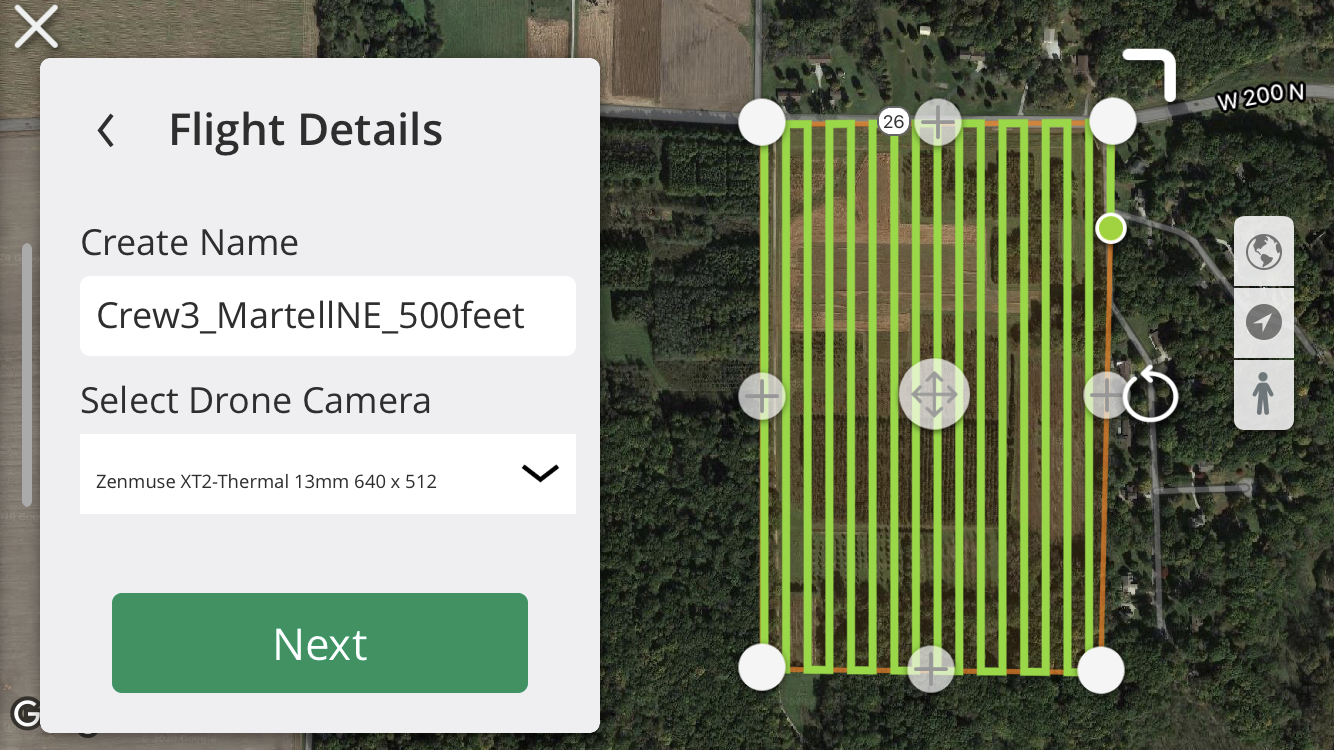

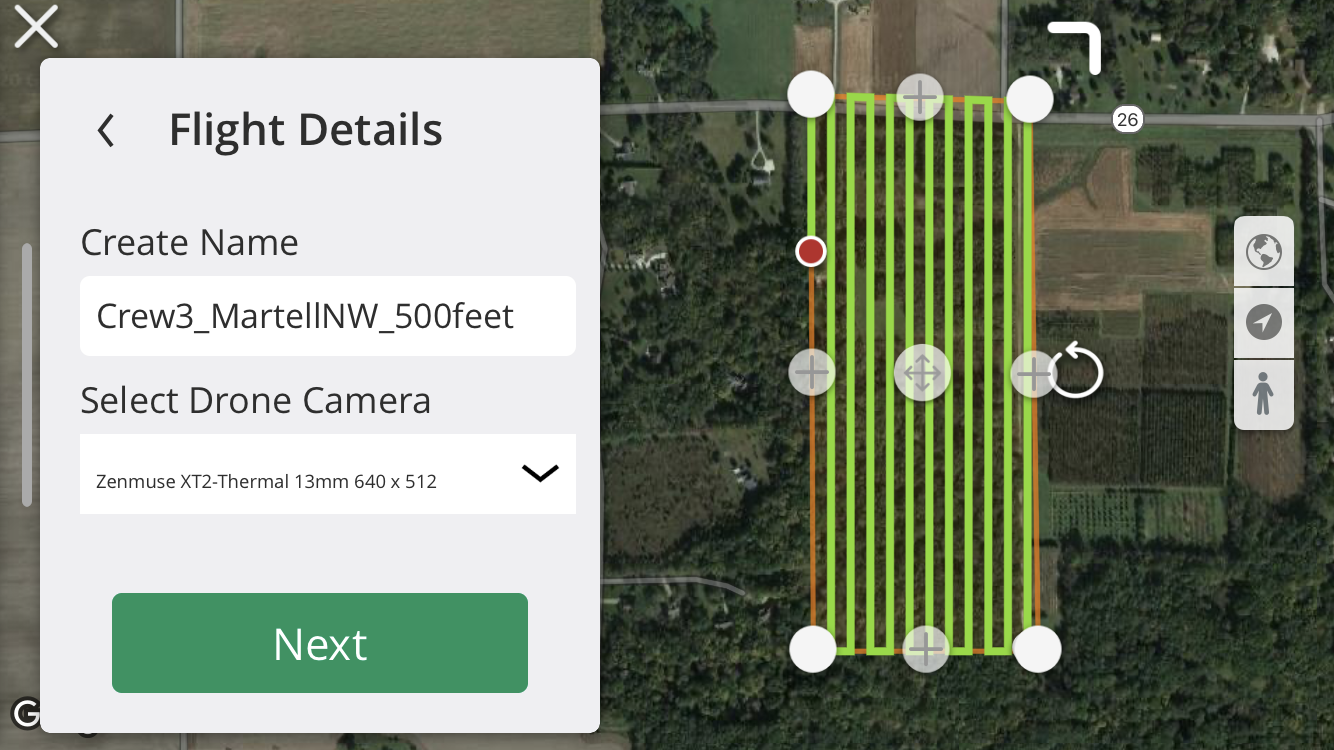

    Below are two images of the Martell forest plots we fly each week. The NE plot shows a green dot on the eastern edge where the flight plan begins, and the NW plot shows a red dot on the western edge where its plan ends.

NE Plot

NW Plot

Metadata

General

------------------

Location: Martell NW / NE Plot

Date: 10/05/20

Vehicle: M600

Sensor: A6000, XT2, Zenmuse

Approval: NA

Flight Information

-------------------

Flight Number/Plot: 1 / NW Plot

Battery: Pink, 30% Remaining

Photos Taken: 267/259

Takeoff Time: 3:44 pm

Landing Time: 4:02 pm

Altitude (m): 152m

Sensor Angle: NADIR

Overlap: 75%

Sidelap: 75%

Loss of RC: RTH

Shutter Speed: 1/4000

Aperture: F3.5

Iso Setting: Auto

Dial Setting: Shutter Priority

Lens Setting: Infinity Focus, F-3.5

Notes: We did one small flight attempt prior to this one and measure timed out so we landed immediately. We took off at 3:36 pm and landed at 3:40 pm. We did a full power cycle.

Flight Number/Plot: 2 / NE Plot

Battery: Yellow, 28% Remaining

Photos Taken: 338/329

Takeoff Time: 4:05 pm

Landing Time: 4:26 pm

Altitude (m): 152m

Sensor Angle: NADIR

Overlap: 75%

Sidelap: 75%

Loss of RC: RTH

Shutter Speed: 1/4000

Aperture: F3.5

Iso Setting: Auto

Dial Setting: Shutter Priority

Lens Setting: Infinity Focus, F-3.5

Notes: The PPK data ended up not being recorded due to accidentally pressing and holding the session button and taking off with a red static light. We were going to refly the plots, but we didn’t need to since every crew flew this week.

Weather: Sunny, Blue Skies, Clear

------------------

Metar:

KLAF 051854Z 15011G17KT 10SM CLR 17/03 A3020 RMK A0Z SLP229 T01670033

Temp: 63 degrees

Humidity: 39%

Precipitation: 0%

Clouds: None

Wind: 11 mph

Crew

------------------

PIC: Aaron Varnau

VO: Treston Russell

Submitter: Tristan Bungen

Aircraft Sightings:

• None
